SIM1400-6D Reinforced Laptop
| CPU | Intel® Core i7-6600U Dual core processor with a clock speed of 2.6GHz |
| Memory | Standard 8GB SODIMM DDR4, supporting up to 32GB |
| Hard disk | Standard 256GB M.2 SSD, supporting up to 5T |
| Display screen | 14 inch LED high-definition LCD display screen |
| Resolution 1920 × 1080, optional for sunlight visibility | |
| GPU | Intel HD Graphics 520 Integrated graphics card, optional GeForce 1050 discrete graphics card |
| OS | Supports operating systems such as Windows 7/10 and Galaxy Kirin |

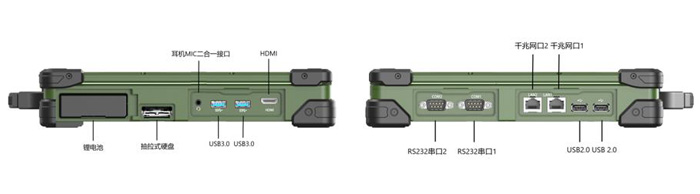

| I/O | USB3.0 TYPE A *2 |
| USB2.0 TYPE A *2 | |
| HDMI A TYPE*1 | |
| 10/100/1000Mbps Adaptive network port RJ45*2 | |
| RS232 serial port DB9*2（adjustable） | |
| Headphone microphone 2-in-1 3.5mm * 1 set | |
| DC IN power input aviation plug interface * 1 | |
| Sound System | Equipped with left and right dual stereo speakers |
| Keyboard and mouse | Waterproof notebook keyboard, touch mouse, split type left and right physical buttons |
| Button | Light on/off button * 1 |
| Expand | mini PCIe *1，mSATA *1 |
| Lithium battery | Standard configuration: 90Wh (maximum 140Wh at room temperature) intelligent lithium battery |
| Power supply | DC 19V power supply, equipped with AC 220V~DC19V adapter |
| Indicator light | Power indicator light * 1 Hard disk indicator light * 1 Keyboard case indicator light * 1 Number key indicator light * 1 Battery level indicator light * 1 |
| Structure | |

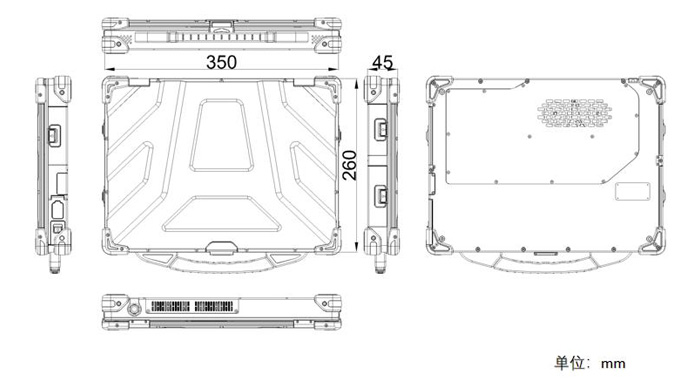

| Size | 350±2 mm×260±1mm×45±1mm（W×D×H）, Excluding local protruding parts such as handles and footrests |
| Weight | About 3.5kg (excluding adapter) |
| Color | Military vehicle green GY06 |
| Material | Magnesium-aluminum alloy |
| Environmental adaptability | |
| Operating Temperature | -20℃～+55℃；-40℃～+55℃（Optional, including lithium battery） |
| Storage temperature | -40℃～+70℃ |
| Low pressure | Meet the altitude requirement of 5000m in GJB150A-2009 |
| Vibration | Meet the relevant requirements in GJB367A-2001/GJB150A-2009 |
| Impact | Meet the relevant requirements in GJB367A-2001/GJB150A-2009 |
| Protection level | Meets IP54 (optional IP65) |
| Damp-heat | Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional) |
| Mold | Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional) |
| Salt fog | Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional) |
| Electromagnetic Compatibility | Meet the requirements of CE102, CS101, CS114, CS115, CS116, RE102, and RS103 (optional) in GJB151B-2013 "Electromagnetic Emission and Sensitivity Requirements for Military Equipment and Subsystems" |
| Name | Model configuration |
| Reinforced notebook | SIM40 Intel 6代Core i7-6600U CPU/8G DDR4/256G SSD |
| Dedicated graphics card | GeForce 1050 MXM Independent graphics card (optional) |
| External drive | External USB DVD-RW burning optical drive (optional) |
| Desktop installation rack | DK-Fix-14 Desktop installation rack (optional) |
| Packing box | Military backpack (optional) |
| Trolley bag (optional) | |
| Aluminum alloy box with pull rod (optional) |
