21.5-inch (domestic architecture)
SRT-8215C touch all-in-one machine
Product Features:< br/>
1. Adopting Feiteng FT-2000 quad core CPU with power consumption as low as 14W and Tengrui D2000 eight core CPU with power consumption as low as 40W

2. The motherboard integrates display output and supports one VGA channel, HDMI

3. Supports 2 USB 3.0 ports and 8 COM ports

4. Supports Mini PCIE WIFI/Bluetooth/4G modules

5. Supports M.2 SSD (Key-M)

6. DC9~36V power input

7. Adapt to Kylin/UOS system
SRT-8215C touch all-in-one machine
相关下载
产品参数
Model
SRT-8215C/Localization Platform
processor
Feiteng
Feiteng FT2000/Tengrui D2000 (8-core+X100 bridge)
Memory
specifications
DDR4
operating system
Kirin/Tongxin
KyLin/UOS
Storage
MSATA
1*MSATA/1*SATA
display
HDMI
Supports 1920 * 1200
I/O interface
USB
2*USB3.0
display
1*HDMI
Network interface
2 Realtek RTL8111H Gigabit Ethernet cards
Serial port
8 * RS232 (COM6 optional RS422/RS485)
audio
RTLALC662 audio controller, LINE out port
Expansion card slot
Multi functional expansion card
LCD screen
display
21.5“ Inch
resolution
1920*1080
Visible area
476.6 x 268 mm
contrast ratio
800:1
Maximum color
16M
Touch Screen
type
Capacitive type
resistance-type
transmittance
87% ± 3 %
Over 85%
Click on lifespan
30,000hrs
30,000hrs
response time
14 ms (GTG)
Display color
16.7M Colors
Aspect ratio
16: 9 (Standard)
structure parameters
Panel box
The casing is formed using aluminum alloy molds
power input
DC 9~36V (3-PIN Phoenix Terminal)
Overall dimensions
525 x 316.5 x 60.1 mm
Installation method
Embedded panel, compatible with bracket for VESA installation
power
55W
weight
4.8Kg
Environmental parameters
Operating temperature
-20-60 ℃ (electronic disk)
storage temperature
-30~70℃
Related humidity
10-95% @ 40 ℃ (non condensing)
Front panel protection
IP65 standard






Ordering Information


PRODUCT MODEL
to configure
SRT-8215C/FT2000
Feiteng FT2000/2 * LAN/2 * USB/8 * RS232/1 * HDMI/1 * VGA/9-36V
SRT-8215C/D2000
Tengrui processor D2000/8 cores+X100 bridge/2 * LAN/2 * USB/8 * RS232/1 * HDMI/1 * VGA/9-36V






Optional accessories


product name
to configure
Mini PCIE
Supports CAN card/M.2 hard disk/5G module
PCIE extension
PCIE 3.0 X16 slot (X8 signal)
Battery power management module
Supports DC9~36V wide voltage

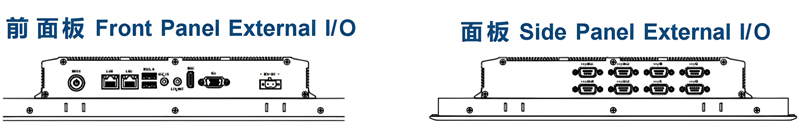

接口说明

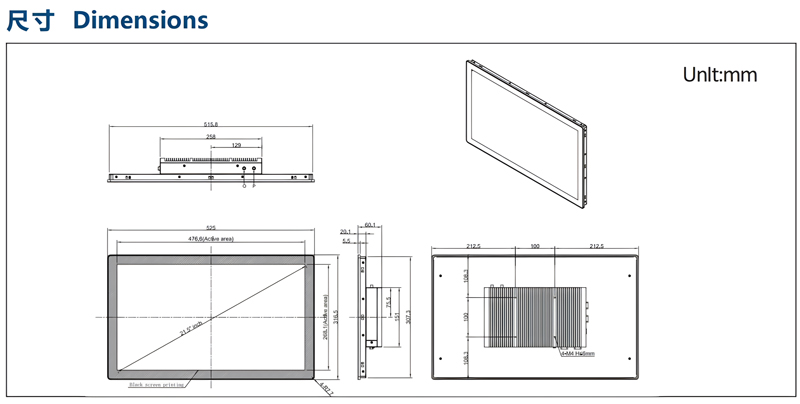

产品尺寸
